A Detailed Overview on Plastic Mold Manufacturing

Plastic mold manufacturing is a process used to fabricate custom plastic components and products through injection molding, blow molding, rotational molding, and more. This manufacturing method is highly versatile and can produce plastic parts and products in high volumes with precision and efficiency. In this comprehensive guide, we will explore what exactly plastic mold manufacturing encompasses and how it works to create the many plastic goods we use every day.

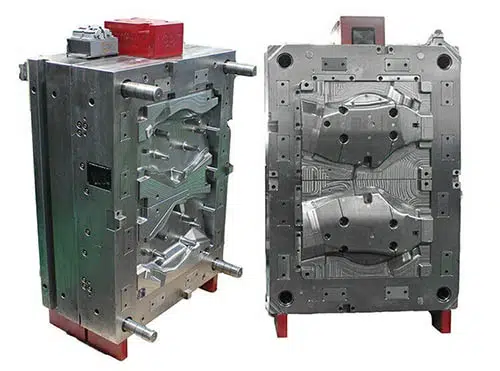

plastic mold

What is Plastic Mold Manufacturing?

Plastic mold manufacturing utilizes molds, or custom tooling, designed to produce plastic components of a specified shape and size.

During production, we inject or pour molten plastic resin into the mold cavity, followed by cooling and hardening to achieve the desired shape. Our skilled technicians use precise machining techniques to create molded plastic parts with tight tolerances and intricate details.  Overall, it proves to be an efficient and cost-effective method for fabricating custom plastic components and products.

The History of Plastic Mold Manufacturing

In the 1900s, new molding techniques emerged for shaping plastic. China invented one of the earliest injection molding machines in the 1920s using a basic plunger to inject molten plastic into a mold.

In 1946, American inventor James Watson Hendry built the first screw injection machine. His design created the basis for the modern reciprocating screw injection molding machine.

Over the decades, plastic molding technology continued advancing and by the 1970s was a predominant manufacturing process. The automation of injection mold machines and other innovations drove increased production volumes and part precision.

Today, plastic molds are machined with CAD and CNC, enabling the fabrication of highly complex plastic components with tight tolerances. Advanced materials like engineering-grade thermoplastics have expanded the capabilities of plastic mold manufacturing.

Different Types of Plastic Mold Manufacturing Processes

There are several fundamental techniques used in plastic mold manufacturing:

Injection Molding

This is the most common method in plastic mold manufacturing. Molten plastic is injected under high pressure into the mold cavity through a sprue. The plastic then cools rapidly to form rigid parts. Injection molding enables high volume production with speed, consistency, and low costs per unit.

Blow Molding

In blow molding, air pressure is used to inflate hot plastic in a mold cavity to make hollow parts like bottles and containers. The main types are extrusion, injection, and stretch blow molding. It allows the high volume production of plastic bottles, jars, and other hollow objects.

Rotational Molding

Also called rotomolding, this technique uses biaxial rotation and heat to distribute powdered plastic resin on the interior walls of a mold. It enables making hollow, seamless plastic items like tanks, containers, and sporting goods.


In this process, plastic sheets are heated until soft and then vacuum formed over a mold using pressure. It facilitates the efficient production of plastic parts like packaging trays, enclosures, and signs.

Compression Molding

The part sets as it cools.

The Plastic Mold Manufacturing Process Step-By-Step

Producing plastic parts via molding consists of several key steps:

Step 1: Mold Design

The mold is first designed based on the geometry and specifications of the required plastic part. Important design elements include the mold cavity, runners, gates, ejection system, and cooling system.

Step 2: Mold Manufacturing

Mold blocks are machined from tool steel or aluminum into the core and cavity components. CNC programming guides the precise machining required to create the finished mold with all its features.

Step 3: Plastic Injection

The mold is secured in the injection molding machine where it will remain for the production run. Plastic pellets or powder are gravity fed from a hopper into a heated barrel. As the material melts, a reciprocating screw forces it into the mold cavity under high pressure.

Step 4: Cooling and Hardening

Channels cut into the mold tooling circulate coolant to extract heat and solidify the plastic. The cooling time depends on the plastic material and wall thickness and may range from a few seconds to minutes. Thicker parts require more cooling time.

Step 5: Part Ejection

Once cooled fully, the two mold halves separate. The mold then closes and the cycle repeats, enabling high volume production.

The Benefits of Plastic Injection Mold Manufacturing

Plastic mold manufacturing provides a wide range of advantages over other production methods:

  • High Volume Production
    • Rapid and efficient production of thousands of plastic parts becomes possible once the mold is ready. Injection molding enables mass production of plastic components.

    Low Labor Costs

    • Automated injection molding machines maintain lower labor requirements in comparison to traditional assembly or fabrication techniques. A single operator can oversee multiple machines.


    • Each shot yields an identical plastic part, with minimal variability when utilizing the same mold tool.

    Complex Geometries

    • CNC machining of molds enables the production of plastic components with intricate geometries, a feat often impossible with alternative methods.

    Material Versatility

    • Injection molding accommodates a wide range of plastic materials, including ABS, polypropylene, nylon, and engineering-grade thermoplastics.


    • The molding process can incorporate various decorating techniques, such as color, textures, graphics, laser etching, in-mold labeling, and more.

Common Plastic Injection Molded Parts

Injection molding and other plastic mold manufacturing techniques are used to fabricate many common plastic products we use regularly:

  • Electronic enclosures and housings
  • Packaging containers and lids
  • Automotive interior and exterior trim parts
  • Medical components like syringes and IV parts
  • Caps and closures for containers
  • Household appliance components
  • Plumbing fittings and valves
  • Lawn and garden furniture
  • Sports equipment like helmets and pads
  • Toy parts like action figures and doll components

Factors That Influence Plastic Mold Manufacturing Lead Times

The time required to produce plastic molds depends on several key factors:

  • Mold Complexity – Intricate mold geometries demand more intensive CNC programming and machining work, increasing lead times.
  • Mold Size – Larger molds require longer machining and therefore longer lead times.
  • Mold Material – Tool steel molds take longer to machine than aluminum molds.
  • Cavity Count – Molds with higher cavity counts need more precision machining time.
  • Manufacturer Workloads – Lead times increase if a manufacturer is operating at peak capacity.
  • Part Testing – Testing molded prototypes and making any mold adjustments adds time before full production.

With typical production molds, lead times can range from 6-12 weeks on average. Prototype and multi-cavity molds often require 12-20 weeks.

Key Considerations for Plastic Mold Manufacturing Projects

Here are important considerations when planning a paint bucket mould manufacturing project:

  • Determine production quantities needed to calculate potential per unit cost savings.
  • Select the optimal plastic material based on strength, heat resistance, electrical properties, and other requirements.
  • Define all critical dimensions, geometries, mold actions, and other specifications required.
  • Partner with an experienced injection mold maker that provides engineering support and design for manufacturability guidance.
  • Plan adequate lead time for mold design, CNC programming, tooling fabrication, sampling, testing, and adjustments.


PET preform mould manufacturing is a versatile production method used globally to fabricate a diverse array of plastic components and goods.

With innovations in materials, machinery, and manufacturing techniques, plastic molding will continue evolving and expanding its capabilities. Lighter, stronger, and more functional plastic components will emerge across industries to build the products of the future.
